How to use 360 images in InfraField on desktop

This article will show how you can use 360 photos in InfraField to get visual insights into the construction site from anywhere. 360 images allow you to compare captures from different points in time and create registrations directly from the picture.

360 photos in structures work the same as in Dalux Field, learn more about how to set up and use the feature in structures in this article: How to use 360 photos

When working with 360 photos on the map, InfraField allows you to multi-upload photos and place them automatically if they include geoinformation.

If you want to learn how to take and view 360 photos on mobile read this article: How to use 360 photos in InfraField on mobile

How to upload individual photos to Locations

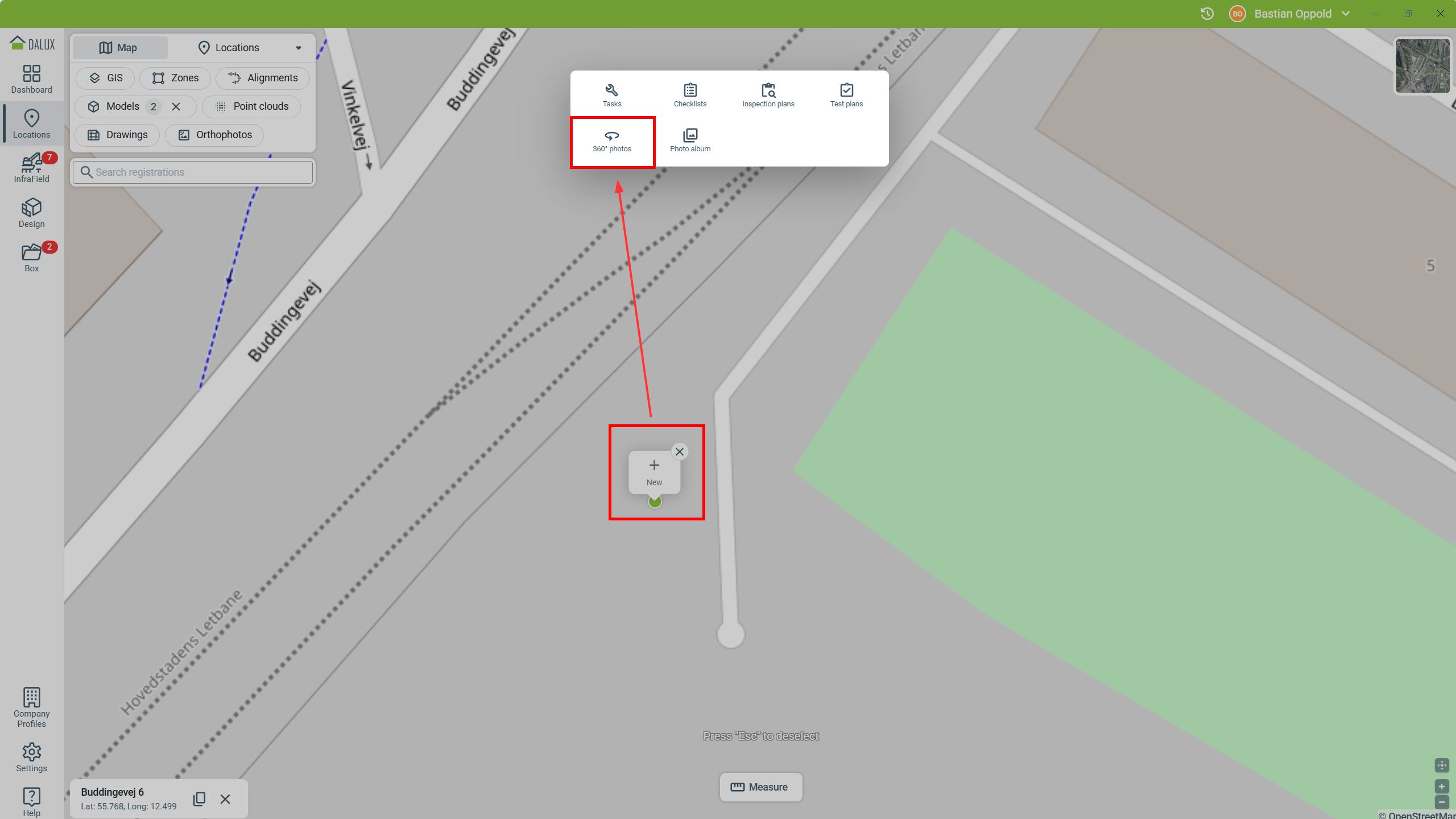

To upload individual 360 images to a specific location, we recommend going to:

LocationsNavigate to the location in the map, in the drawings, or the top view of the areaClick on the photo's locationNew360 photos

This will place your 360 image on this specific location.

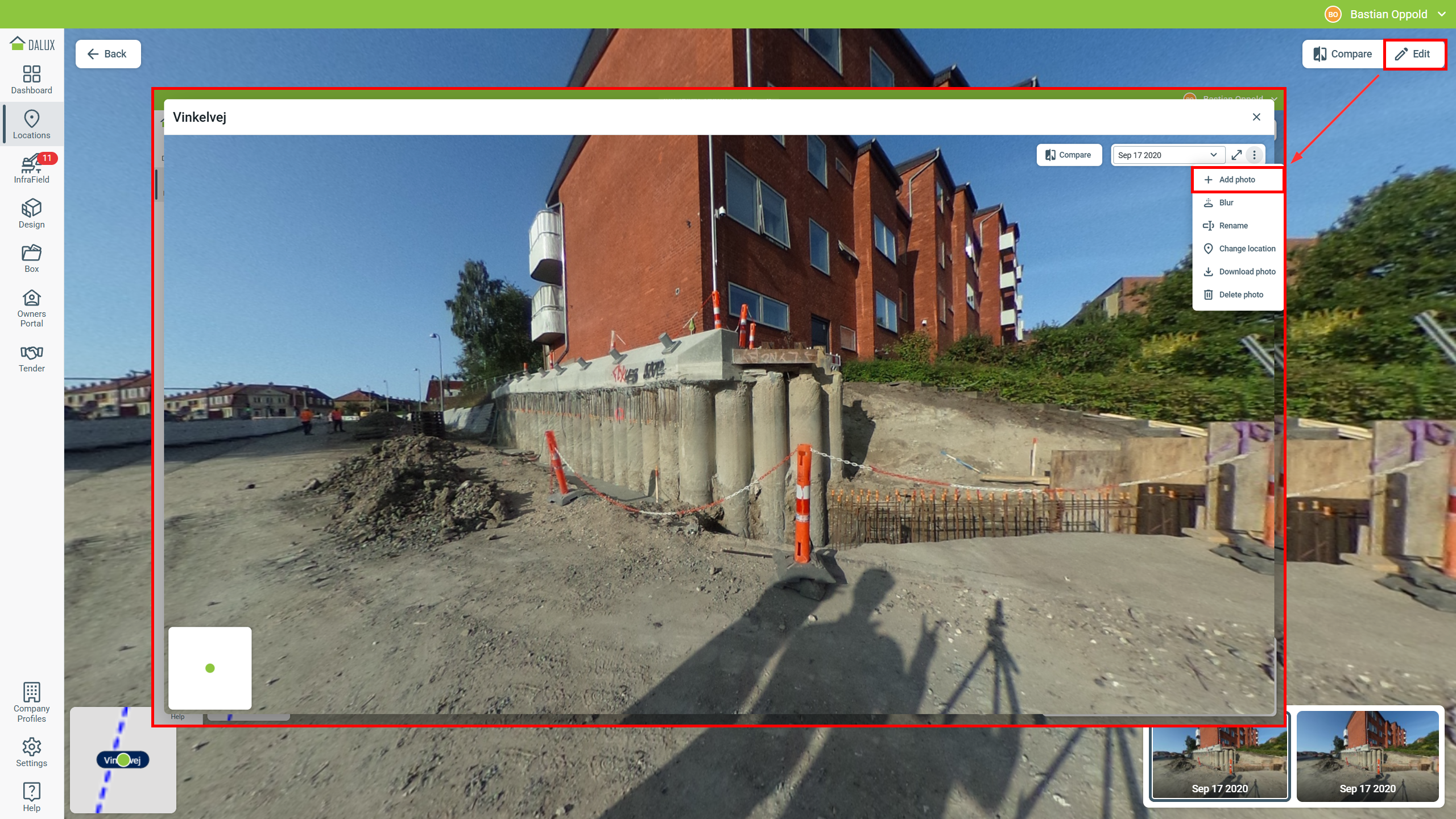

You can add multiple versions to the same image by going to:

LocationsNavigate to the photo's locationClick on the photo to openEditAdd photo

The uploaded photo will be saved as a new version, allowing you to compare 360 images on the desktop.

Multi-upload photos with geolocation

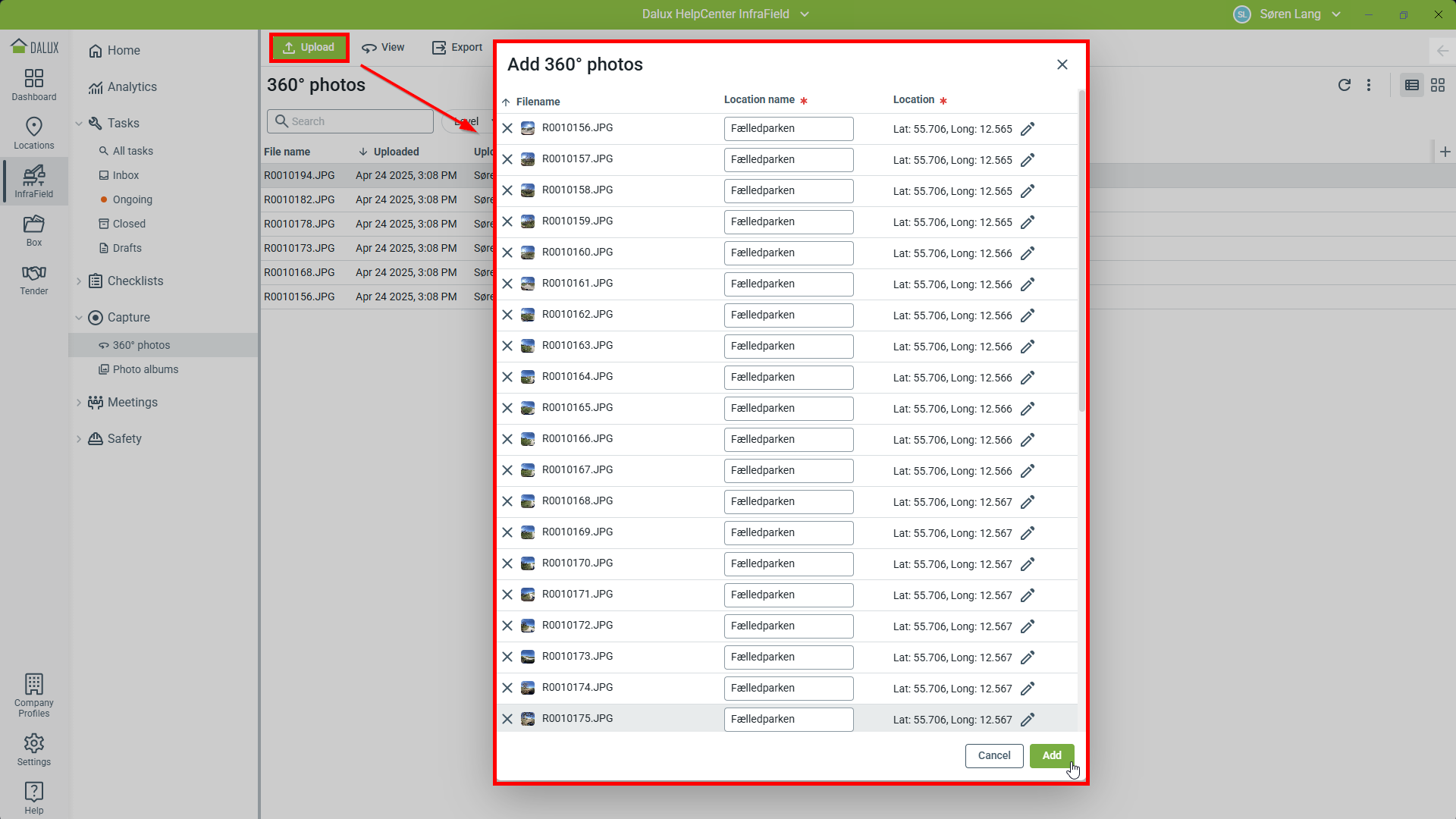

You can upload multiple photos at once and either place them manually or automatically place them if they contain geo-referencing data. This is done by going to:

InfraFieldCapture360 photosUpload

After selecting all the photos from your PC, you can add the location of all these photos in the new dialog.

If photos include their geolocation, the 'Location' is filled out automatically. You can still change this before uploading them.

How to view and edit 360 photos on the desktop

You can open 360 photos by going to either

InfraFieldCapture360° PhotosDouble-click on a photo to open

or

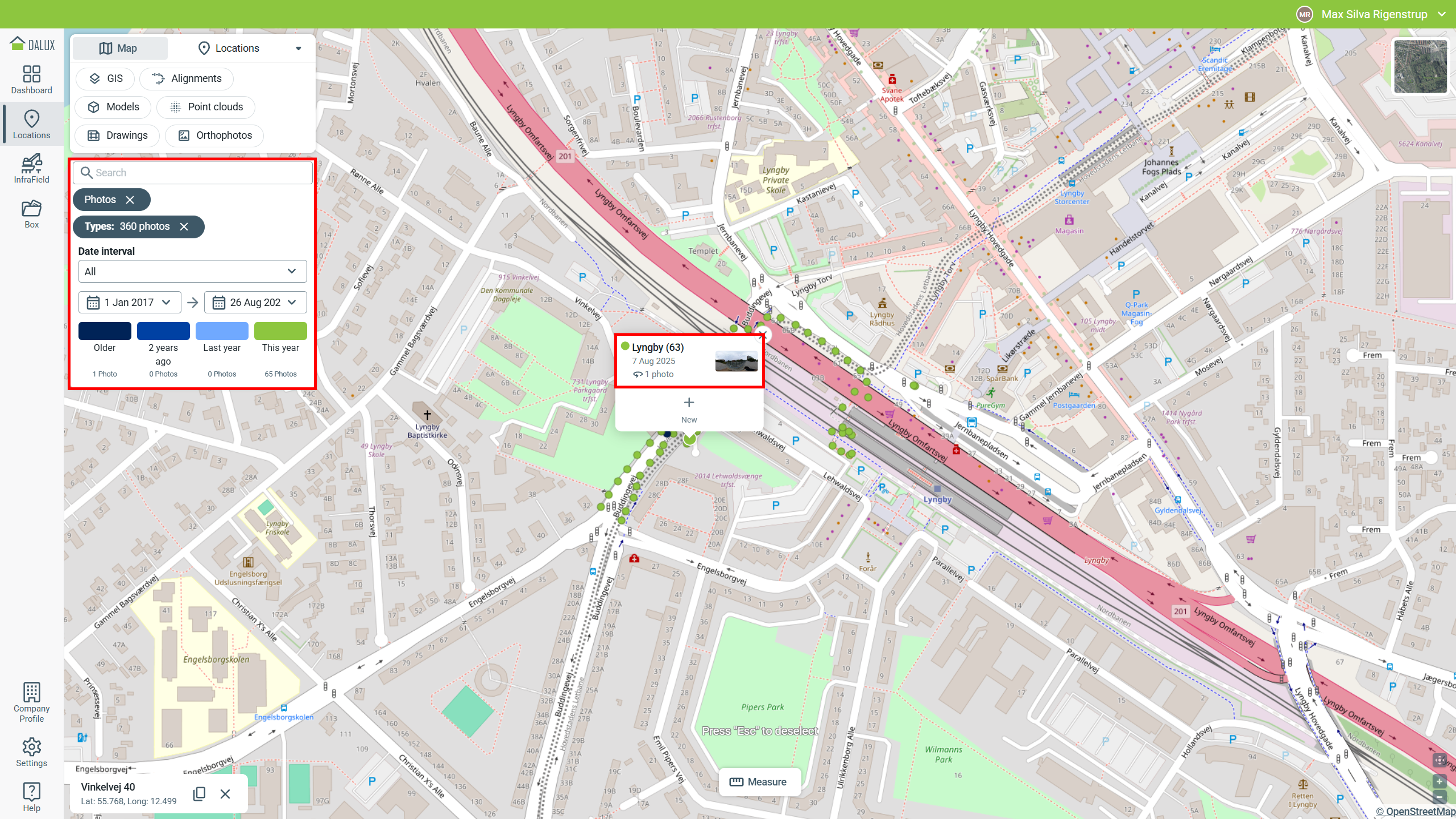

LocationsFilter for 360 imagesNavigate to the location in the map or the drawingsClick on the photo's dotSelect the photo from the list

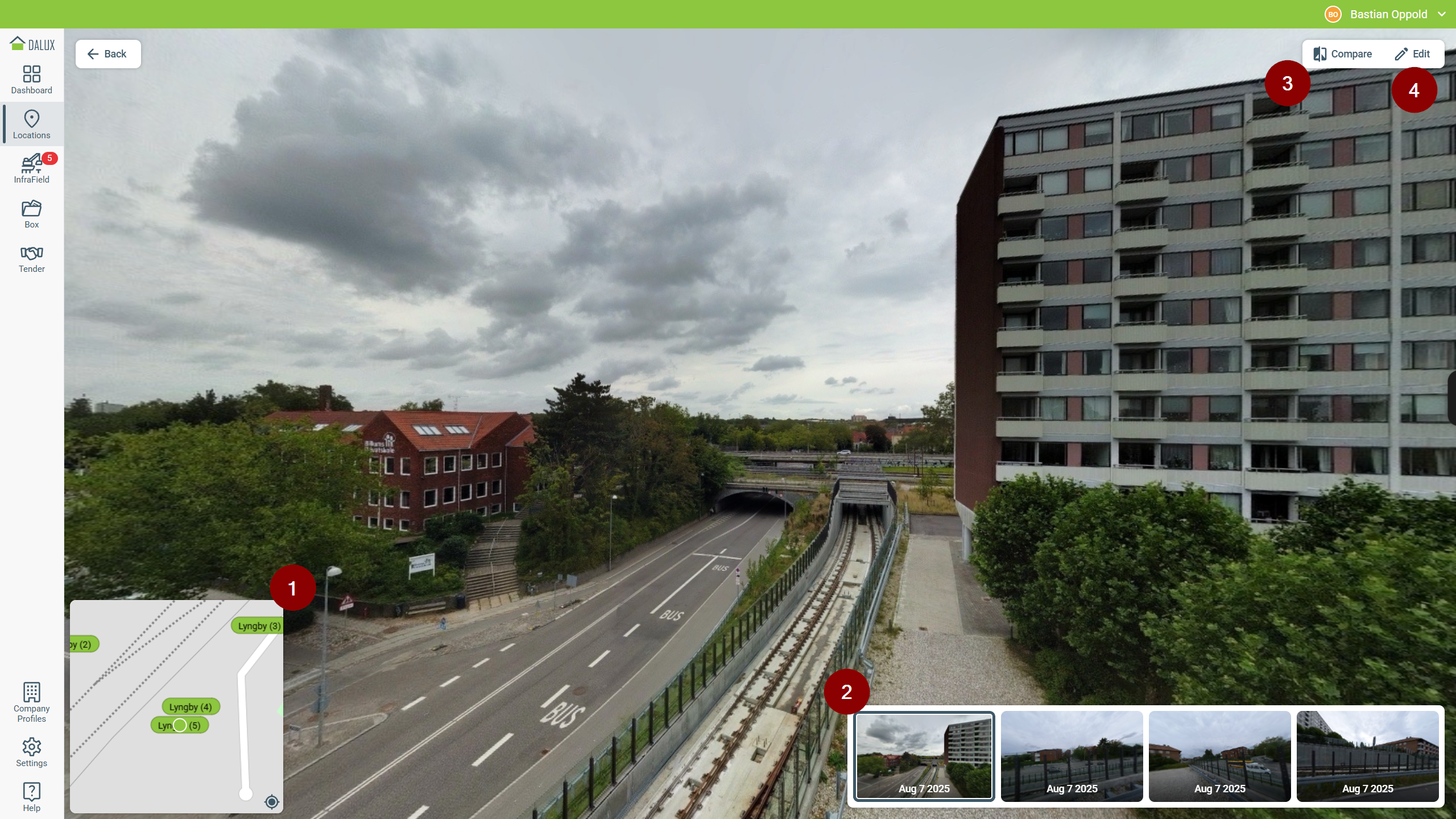

Viewing mode

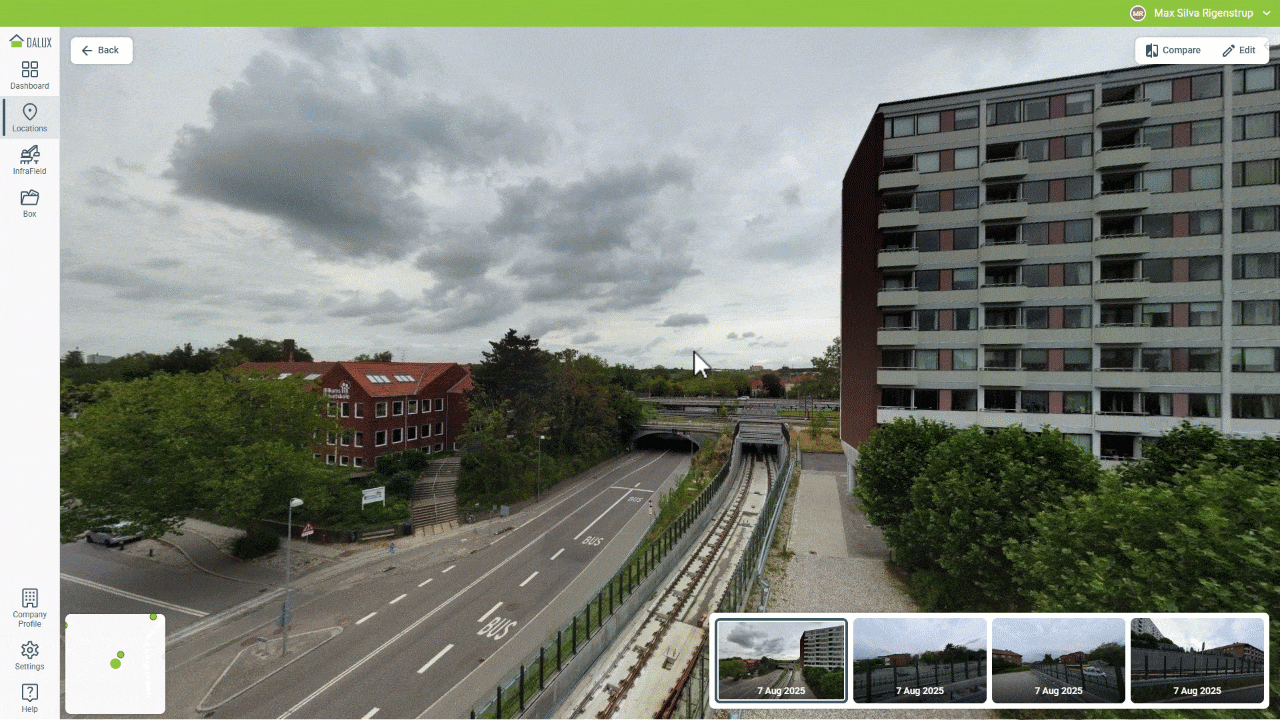

When viewing the 360 photo, you can hold and drag your left mouse button to rotate the image and your mouse wheel to zoom in and out.

1. On the bottom left, you see a mini map, allowing you to see the location on the map or drawing where the photo is placed.

2. If the photo is placed on the map or in an area, you get a preview of nearby images. This makes it easier to find better angles of certain objects.

3. Compare lets you compare the open photo with other versions of this image or the 3D model. Read more in the section below.
4. Edit will bring you to editing mode.

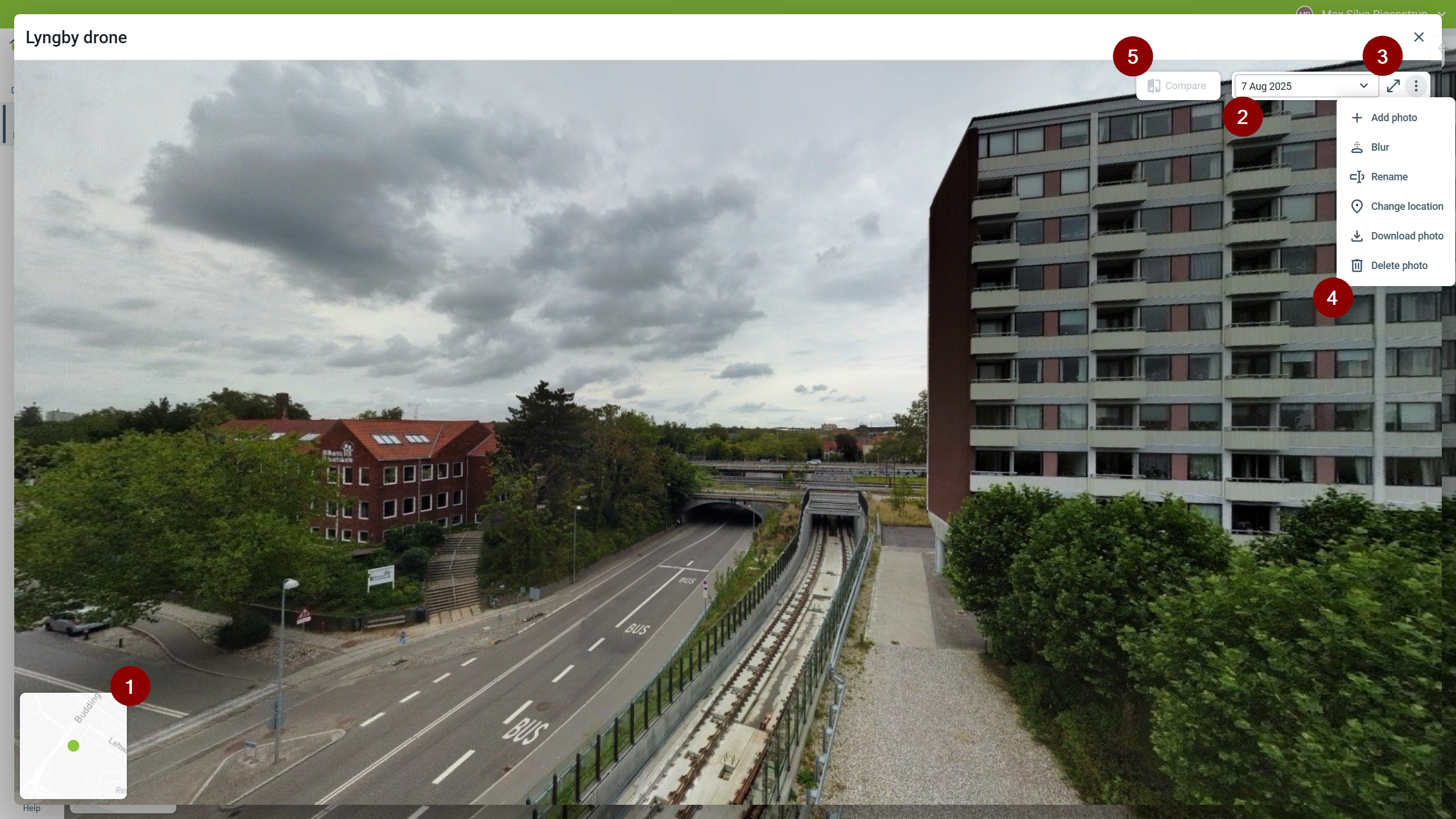

Editing mode

1. The mini map is also available in editing mode.

2.  You can use the date selector to open a photo at the same location that was taken on a different date.

3. will hide all the menu items for a full-screen experience.

4. The menu gives you some additional features, like

   • Add photo: Upload a new version to this photo, such as from a different date.
   • Blur: Manually blur sensitive parts of the photo.
   • Rename: Give the photo (and its versions) a new name.
   • Change location: Select a new location for the photo (and its versions).
   • Download photo: Download the photo to your local drive.
   • Delete photo: Delete the selected photo. Other versions of this location will still be available.
5. With Compare, you can compare the image to other versions of this image or the 3D model.

Compare two 360 images

With the Compare feature, you can view 360 images of the same registration side by side. With the date selector, you can compare photos with previous versions to track changes throughout the project.

You will see a preview of the photos that you can compare with.

Use the date selectors to switch between different versions so you can track changes throughout the project timeline.

By default, you can navigate both images individually. Click on the button to lock both images together, so you can move them simultaneously.

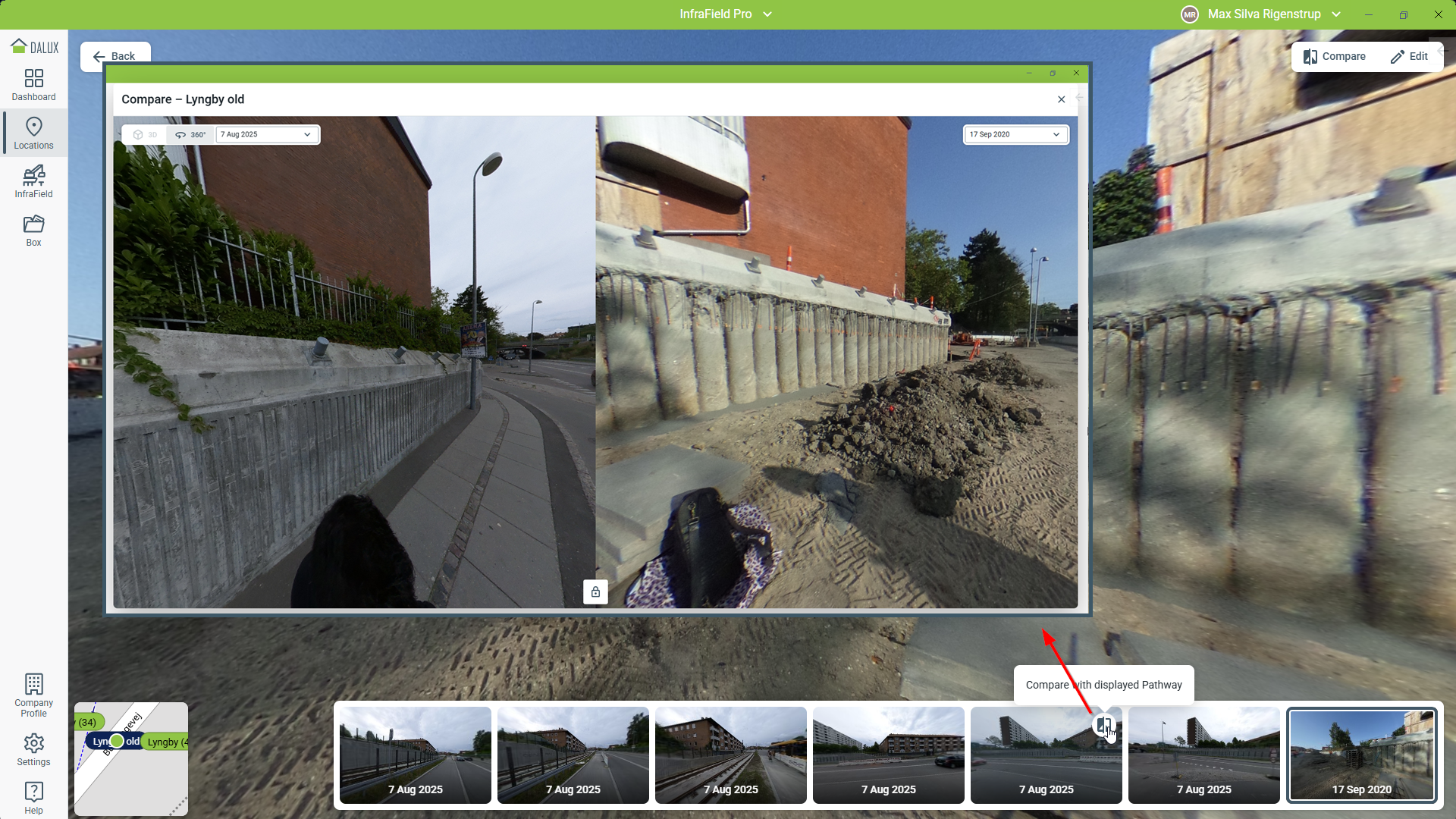

Alternatively, you can also use the Compare feature directly from the preview pane. The button appears when you hover your mouse over a thumbnail.

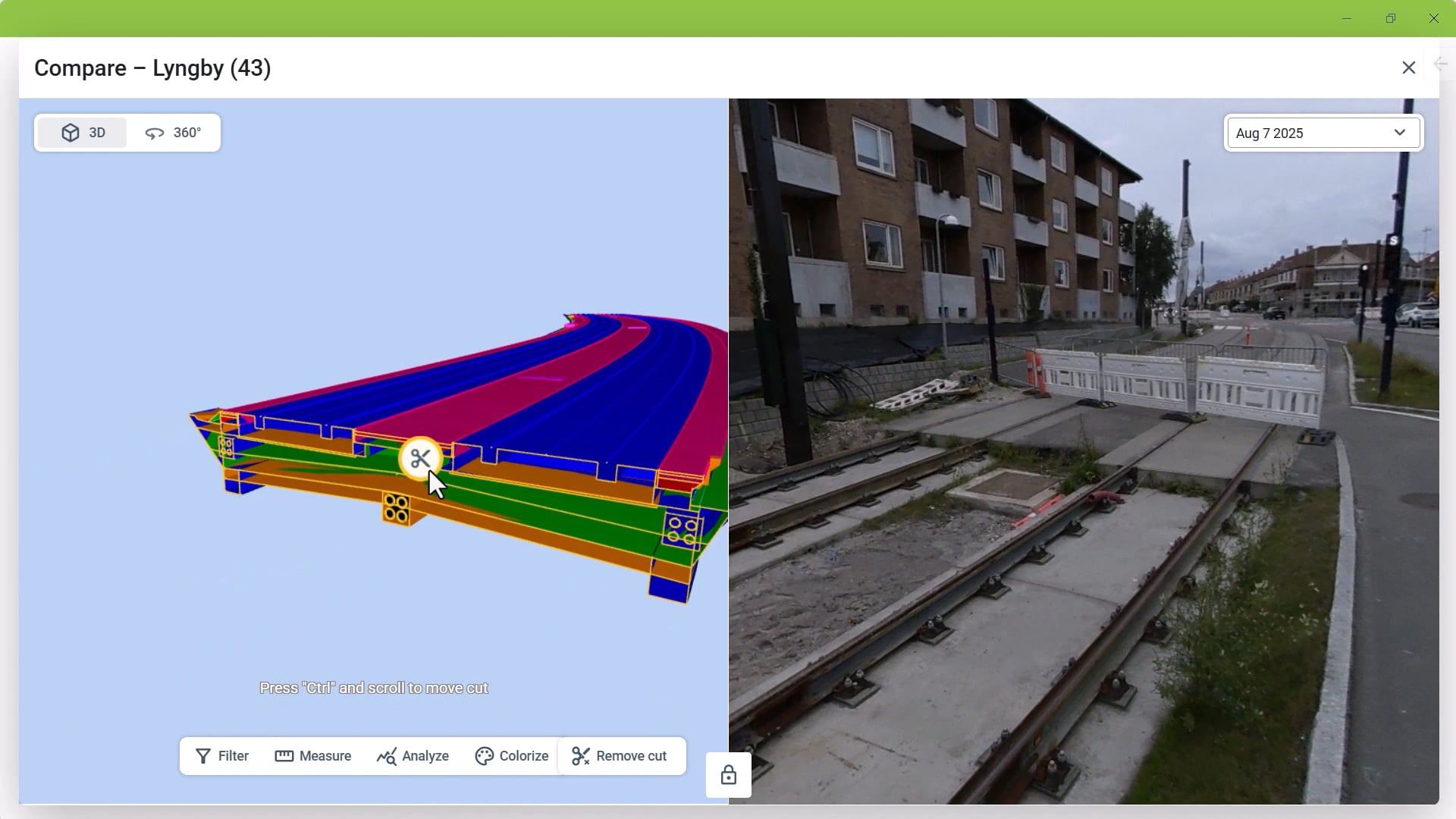

Compare 360 images to BIM

If the photo is placed in a structure, you have the option to compare it to the 3D model.

If the photo is placed on the map or in an area, you have the option to compare it to images that are placed nearby or to a nearby 3D model.

With the compare mode open, click on 3D.

Just like when comparing two 360 photos, the view can be synchronized and locked. In the 3D view you have many of the same options as in Locations, such as creating cuts, measures, and filters.
