This article will explain how to capture and view 360 photos in InfraField on mobile.
On mobile you can capture 360 images directly with supported camera models. You can also view 360 images and switch between multiple dates.
To learn more about how to use 360 photos on desktop read this article: How to use 360 images in InfraField on desktop
How to set up Capture
Read more
If you want to learn more about setting up Capture, read this article: How to set up Capture.
User rights
Users with 'View and upload' permissions can edit the name and location data.
Only project/Field administrators can delete individual 360 photos.
Dalux Mobile currently supports the following cameras for taking 360 photos directly in the app:
- Insta360 X5 (Also works with SiteWalk, requires an SD card, e.g. a MicroSD V30)
- Insta360 X4* (Also works with SiteWalk, requires an SD card, e.g. a MicroSD V30)
- Ricoh Theta Z1 (Also works with SiteWalk)
- Ricoh Theta X
- Ricoh Theta SC2
*Please note the Insta 360 X4 Air is not supported.
360 photos from other cameras can still be uploaded and used within Dalux.
We recommend avoiding lens guards with Insta360 cameras to prevent glare and distortion. If you use one, select the 'Lens Guard' option in camera settings and ensure it is installed properly to avoid blocking the lens.
Tips and tricks
360 photos need to have a location set before they can be saved.
By default, a new 360 photo is named after the location name, or room property if available.
Using Dalux Desktop, two 360 photos can be compared side-by-side - or a single 360 photo can be compared to the 3D model.
How to upload or take 360 photos
Uploading and placing 360 images on the mobile app works the same for areas and for structures. It is done in:
Locations
Navigate to the location on the map, in the drawings, or the top view of the area
Press on the location

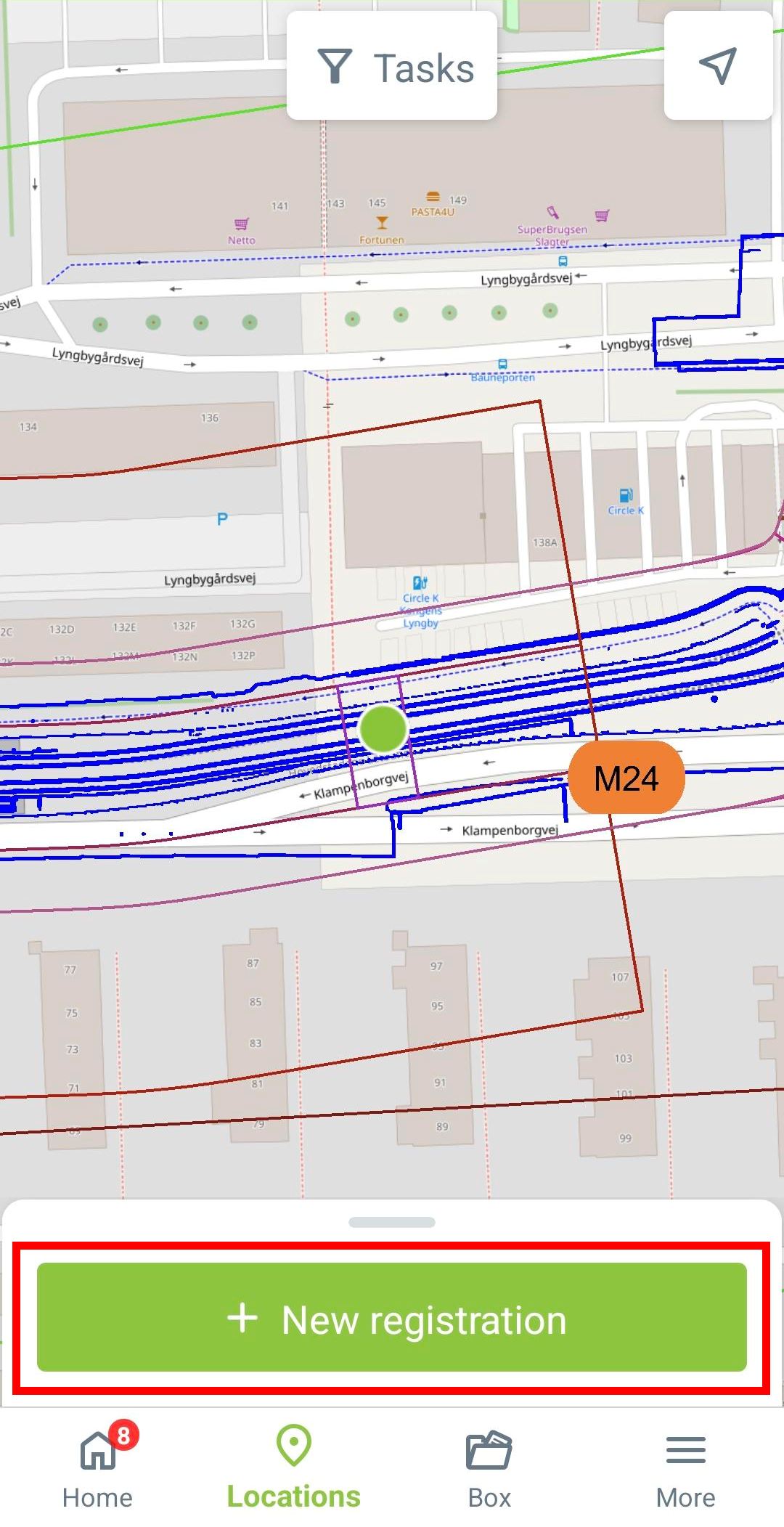

New registration

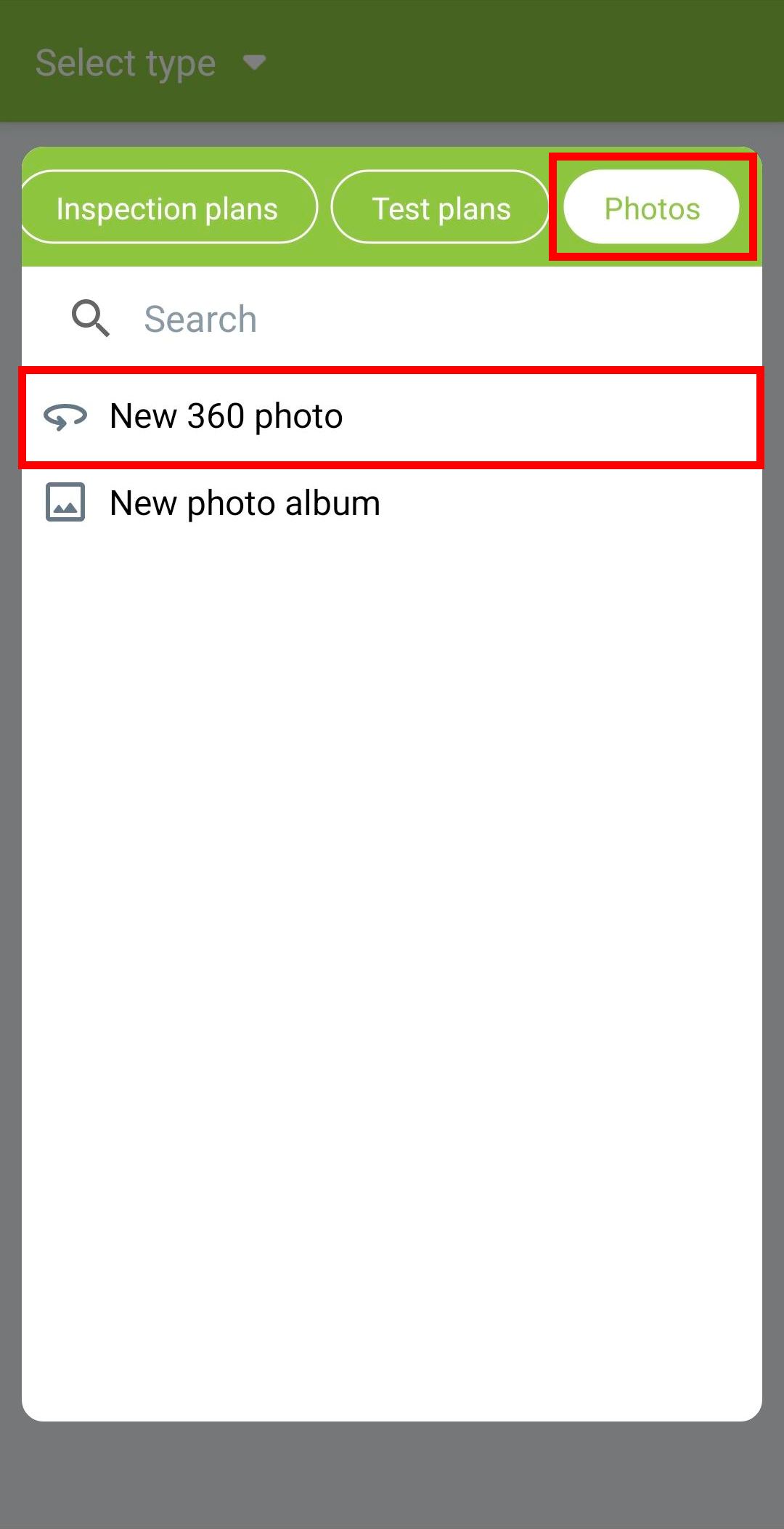

'Photos'
New 360 photo.
If a supported camera is connected, 360 photos can be taken directly in the mobile app by pressing Add.

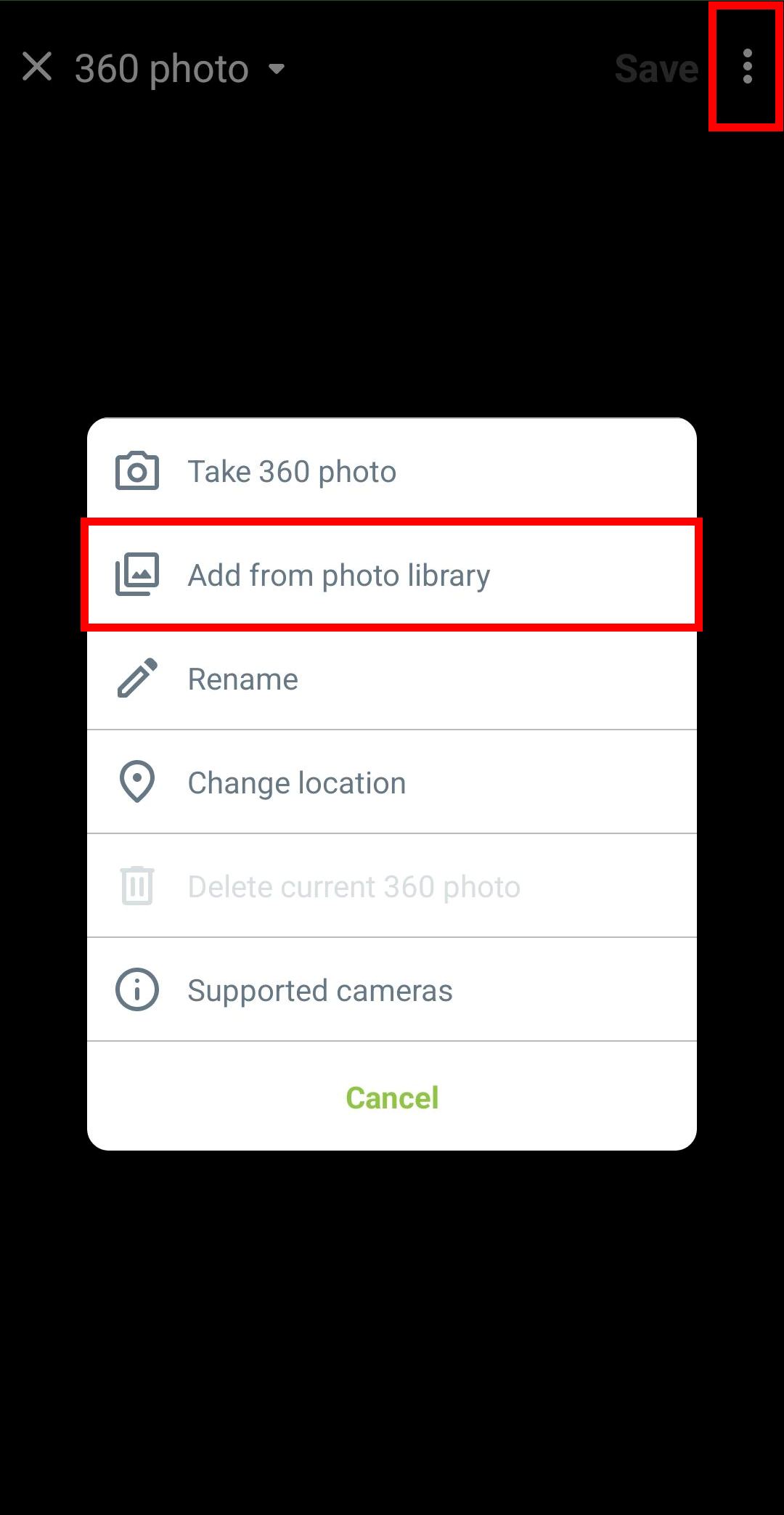

If you have saved 360 photos on your device previously, they can be uploaded from your device by tapping onAdd from photo library.
Read more
If you want to learn more about using and comparing 360 photos on desktop, read this article: How to use 360 images in InfraField on desktop
