This article explains how to add and update drawings in Dalux projects using only Field and Locations. Drawings added to Locations can be used for registrations in Field, such as tasks and checklists.
Read more
If you also have Box in your project, read this article: Update drawing and document versions.
If your project has a 3D model, you should read this article: Upload IFC model files and 2D drawings
How to upload drawings
User rights
Only project administrators or users with editing permissions for Locations can create buildings and upload drawings. Learn more about user groups in this article: How to set up User groups.
Before using drawings in Locations and Field, you must add them to a building. Start by going to:
Settings
Locations
Buildings
Add.
Once the building is created, you can start uploading your drawings from your computer.
Click Upload and locate your drawings.
In the upload window, you can view the files to be uploaded and add disciplines, content descriptions, or drawing numbers for hyperlinks.
The title sets the drawing name displayed to users in Locations and Field, but does not alter the file name. This allows you to simplify the displayed name, making it easier for people to locate the correct drawings on the construction site.
These settings can be modified later.
You can read more about disciplines in this article: Disciplines and subdisciplines
You can read more about hyperlinks in this article: Hyperlinks on PDF drawings
Note
When the drawings are processed, they will be available in Locations for all users of the project.
We recommend only uploading drawings to a building if they are intended to be used for Field registrations.
Your added drawings are now ready to be used in Locations and
Field.
How to add levels
All drawings will be uploaded without levels. If your buildings have multiple levels, we recommend adding levels in Dalux to help organize your drawings.

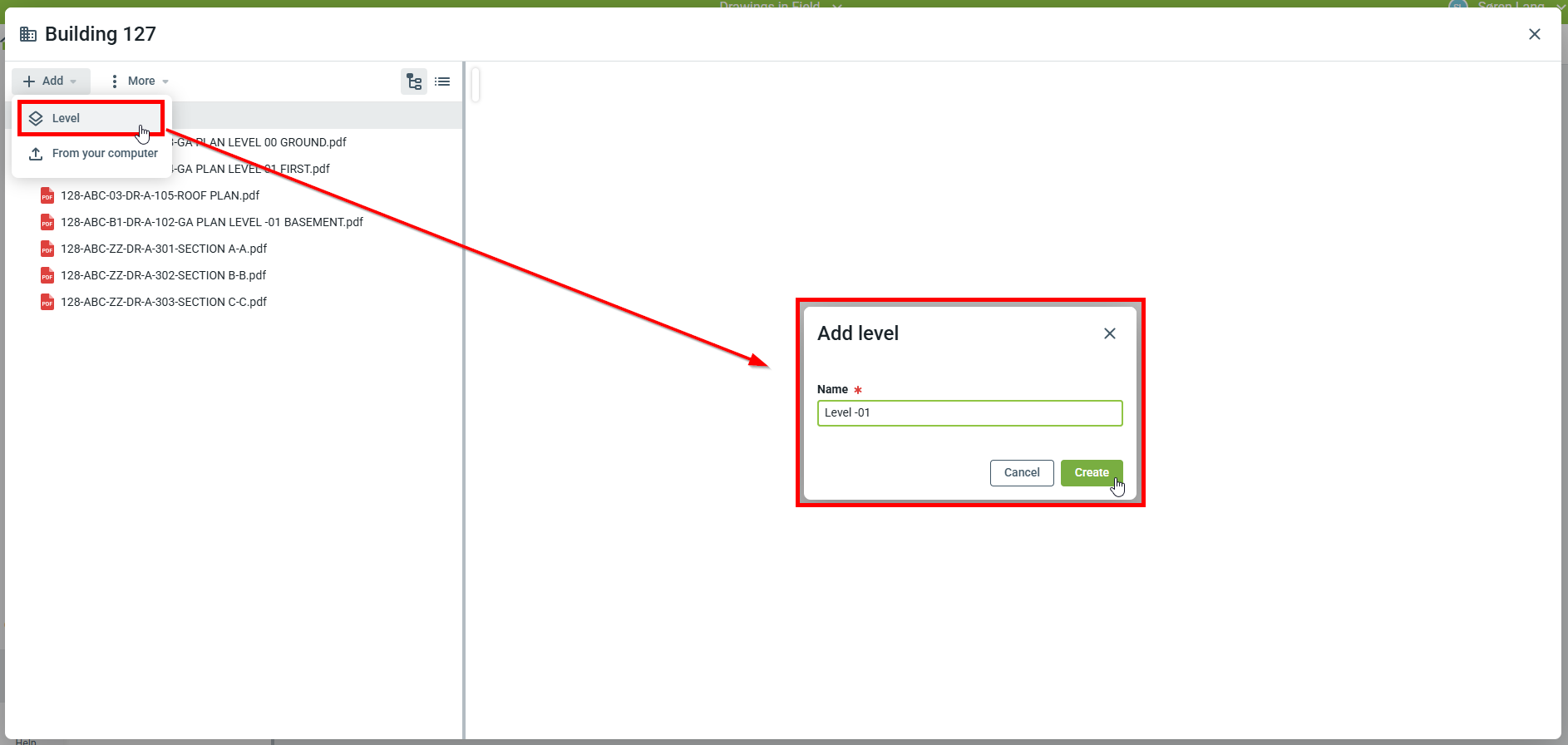

To add a level, click Add
Level
Enter a name
'Create'
The levels should reflect the levels in your building. Once the levels have been created you need to map the drawings.
To map drawings, drag and drop a drawing to a level.
Note
When adding levels, all unmapped drawings will appear in a folder named "Without level" in Locations. You can then:
- Leave the drawings as unmapped drawings
- Hover over the unmapped drawing, then click
Map to 3D
No mapping
Both methods will look the same in Locations
When the drawings have been added to levels and disciplines the result will look something like this in Locations.
How to update drawings
You can update your drawings by uploading a new version to the building.
Technical information
As long as the file name is the same, Dalux will automatically upload the new drawing as a new version. The newest version will always be shown in Locations.
If you upload a file with a different file name, it will be treated as a new drawing. See below how to change file names: Rename drawings or change metadata
Start by going to:
Settings
Locations
Buildings
Select your building
Edit

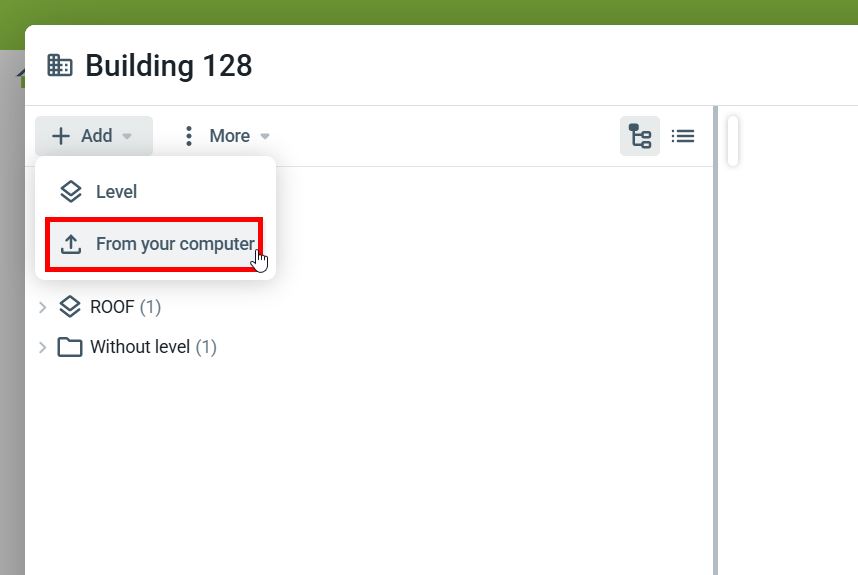

You can then add the update drawing by going to:
Add
From your computer
The upload window will show, that a new version of an existing drawing is being uploaded. Mapping to levels and disciplines will stay the same. Registrations made on the drawing will also stay on the drawing.
Technical information
Ensure the updated drawing is exported with the same settings as the original. For example, if the drawing is rotated or shifts to a different area, registrations in Field will not move with it.
Rename drawings or change metadata
To change the file name, you need to manually upload a new version directly to the file.
To open a drawing either double-click on it, or hover over a drawing, then clickEdit
The drawing will open in a new window. From here you can also download or print the drawing.
Note
If you want to change the displayed name in Locations and Field, update the Title of the drawing.
Metadata can be changed in the menu on the right (Click Show metadata to show the menu).
In the More menu you can use
Upload new version to upload a new version with a different file name. The upload process is the same. Mapping to levels and disciplines will stay the same. Registrations made on the drawing will also stay on the drawing.
